HPC Fire 78"x16" Rectangle S-Burner Bowl Pan Electronic Ignition Fire Pit Insert REVIEW

Do you plan to have an amazing Fire Pit outdoors that looks vivid and performs great? Check theHPC Fire 78"x16" Rectangle S-Burner Bowl Pan Electronic Ignition Fire Pit Insert now!

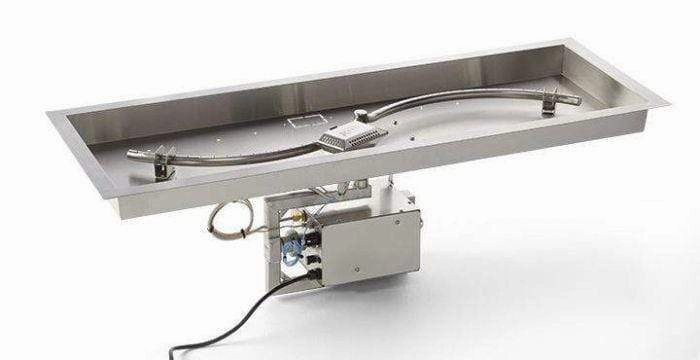

The HPC Fire 78"x16" Rectangle S-Burner Bowl Pan Electronic Ignition Fire Pit Insert is a fully assembled, commercial-grade certified Fire Pit insert. With a powerful high-quality construction material that has the latest technology, this will complement your gas fire pit project.

The Electronic Ignition design allows for a remotely controlled Fire Pit with an On/off or HI/LO setting. There is a flame sensing system that automatically shuts off the gas valve if the flames get turned off.

There is asidewall thataids with media retention, Pan Lip provides for the recessed burner and blowout box

Purchase the HPC Fire 78"x16" Rectangle S-Burner Bowl Pan Electronic Ignition Fire Pit Insert here in Flame Authority!

Features

• Fully Assembled- ready to install. Control components are protected within the valve box.
• Start via wall switch or remote control; Auto re-light if the flame is lost.
• Ignition is complete using a robust and reliable Hot Surface igniter
• On/Off models: Use with optional wall switch, Remote Control, or your whole house system
• High/Low Flame Control Models: Adjust high setting to low setting- ~45% turndown (Remote Control included). Not for use with your whole house system.
• 120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
• Natural Gas or Liquid Propane: Factory built & tested for either fuel.
• Internal temperature monitoring with overheat auto shutoff

Manuals

Specifications

• Model: 78X16SSEI-S
• Dimensions: L-78" x W-16" x D- 2.5"
• Max BTU: 165,000
• Burner: 72 X 10 S-Fire
• Gas Type: Natural Gas / Liquid Propane
• Power Options: 120VAC / 24VAC
• Ignition Style: Electronic Ignition On-Off
• Required Items:Lava Rock / Rolled Lava Stones ( 6 bags ), Fire Glass ( 140 lbs ), River Rock (4 boxes ), Flex-Form Install Collar ( 3 boxes),
• Certification: CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements. (This new EI system already meets upcoming 2020 ANSI requirements).
• Warranty: Lifetime warranty on burners

Outdoor Fire Logs and Rocks

Arizona Weathered Oak

Aspen Birch

Rolled Lava Stone

• 6 Bags Required for this unit

Western Driftwood

Lava Rock

• 6 Bags Required for this unit

Black Ceramic River Rock

• 4 Boxes required for this unit

Fire Glass Media

• 140 lbs Required for this unit

Cobalt Blue

Pacific Blue

Pacific Blue Reflective

Black

Clear

Starfire

Gray Reflective

Copper

Bronze

Optional Accessories

• POWER SUPPLIES - FOR 24VAC & 12VAC MODELS
• Input Primary - 120VAC, 60/50Hz, 1A max Output Secondary - 24VAC & 12VAC, 60/50Hz, 4A

• 120 VAC Outdoor On/Off Remote Control
• Used with EI Fire Pit Systems
• CARLON in-line power control with 3 prongs in/out

• Stainless Steel Rotary Timer
• Available in 2 and 12-hour timer
• 1/2 deep. Double gang box recommended.

• Rotary Timer with NEMA Box
• Available in 2 and 12-hour timer
• NEMA 3R Box with 694 or 695 timer
• Includes timer mounted into the NEMA 3R box for your convenience

• Commercial Emergency Stop
• Push-button with keyed reset allows supervisor confirmation.
• Safely turns off up to 3 circuits plus one fail-safe function.
