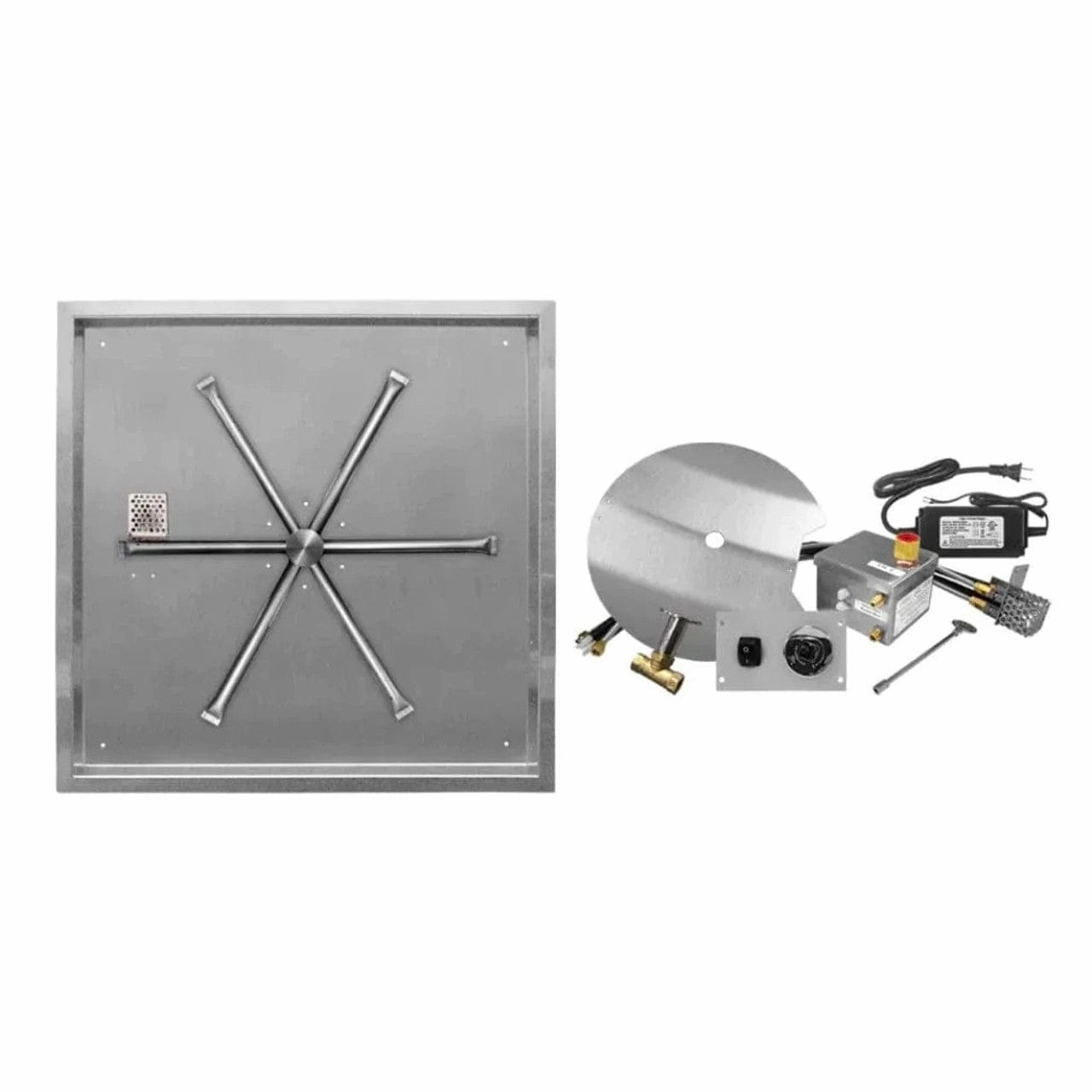

Enhance Your Firegear Stainless Steel TPSI Square Drop-In Natural Gas 20-inch Fire Pit Burner System FPB-20SBS16TPSI-N with Battery-Powered Spark Igniter
The Firegear TPSI Square Drop-In Natural Gas Fire Pit Burner FPB-20SBS16TPSI-N offers an ideal solution for creating a modern and efficient outdoor fire feature. Constructed from premium stainless steel, this 20-inch square burner is designed for long-lasting durability, resisting rust and corrosion even in harsh outdoor conditions. The TPSI ignition system ensures a safe and reliable flame start-up, making it easy to enjoy a consistent fire with minimal effort.
Perfect for custom fire pit installations, the square drop-in design adds a sleek, contemporary look to your patio, backyard, or outdoor kitchen. The burner provides even flame distribution, creating a warm, inviting atmosphere for gatherings or relaxing evenings. Powered by natural gas, it offers efficient and eco-friendly operation. Enhance your outdoor living space with the Firegear TPSI Square Drop-In Natural Gas Fire Pit Burner for a stylish and reliable fire feature.
Key Features for Firegear TPSI Square Drop-In Fire Pit Burner
- Heavy-Duty Construction: The burner andbowl pan feature 304 stainless steel construction
- The TPSI ignition system offers a simple ignition process
- Burning Spur: Stainlesssteel burning spur provides a realistic flame presence
- High BTU: Thesekits are designed with higher capacity orifices to provide a larger amount of BTU
- Most popular ignition system, least amount of cost
- Light a match or a butane lighter
- Can be used in residential installs
- This system is the easiest to use, and with non-listed burners, you can achieve high BTUs and big flames.
Manuals for Firegear TPSI Square Drop-In Natural Gas Fire Pit Burner
Specifications for Firegear TPSI Square Drop-In Natural Gas Fire Pit Burner FPB-20SBS16TPSI-N
- Pan Size:20"
- Burner Size: 16"
- BTU:75,000
- Ignition System:TPSI
- Burner Pan Type: Drop-In
- Burner Pan Material: Stainless Steel
- Shape: Square
- Pan Depth:2
- Min/Max Opening: 20 - 21
- Inside Pan: 20
- Ground Level:8
- Side Wall:36
- Combustible Ceiling:96
- Combustible Wall:18
Caution:DO NOT USE REGULAR STONE OR ROCKdue to susceptibility of explosion.
Gas Pressure
Natural Gas:
- Min. Inlet: 3.5WC (0.87kPa)
- Max. Inlet: 10.5 WC (2.61kPa)
- Normal Inlet: 7.0 WC (1.74kPa)
Liquid Propane:
- Min. Inlet: 10.5 WC (2.61kPa)
- Max. Inlet:13.0 WC (3.23kPa)
- Normal Inlet:11.0 WC (2.73kPa)
Disclaimer: BTU listings are based on 7.0WC for natural gas and 11.0WC for liquid propane (LP) to the gas valve. Flex line size and proper gas pipe sizing will alsoaffect BTU's. As a result, your BTUs may vary slightly from Table 2 specifications.
