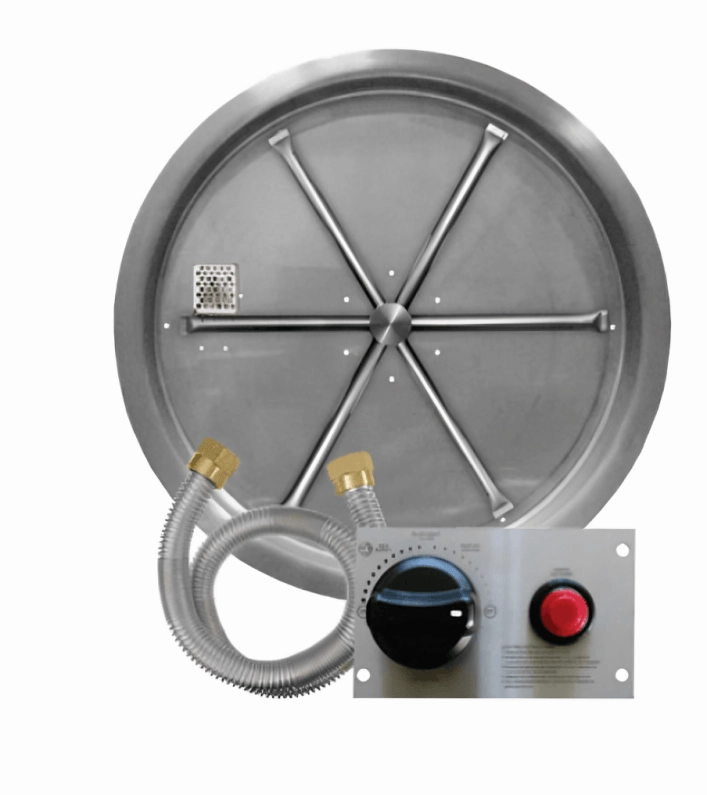

Enhance Your Firegear Stainless Steel TPSI Round Drop-In Liquid Propane 29-inch Fire Pit Burner System with Battery-Powered Spark Igniter FPB-29RBS22TPSI-P
Why Choose the Firegear TPSI Round Drop-In Liquid Propane Fire Pit Burner FPB-29RBS22TPSI-P?
The Firegear TPSI Round Drop-In Liquid Propane Fire Pit Burner FPB-29RBS22TPSI-P offers easy installation, durable stainless steel construction, and a consistent, attractive flame. Perfect for propane fire pits, it provides an efficient burn while enhancing your outdoor space with reliable, long-lasting performance. Create a cozy and inviting atmosphere with this high-quality burner.
Also Available in: , , , , ,
Add-ons Item: Lava Rock Only-20 lbs Lava Rock as a Base 20 lbs Glass (on top of Lava Rock)40 lbs. Lava Stones (on top of Lava Rock) 25lbs Glass Only 90lbs
Key Features for Firegear TPSI Round Drop-In Fire Pit Burner
- Tested and Approved to ANSI Z21.97-2014/CSA 2.41-2014 standards by Underwriters Laboratories (UL)
- Ready to install
- Most popular ignition system, least amount of cost
- Light a match or a butane lighter
- Can be used in residential installs
- This system is the easiest to use, and with non-listed burners, you can achieve high BTUs and big flames.
Manuals for Firegear TPSI Round Drop-In Liquid Propane Fire Pit Burner
Specifications for Firegear TPSI Round Drop-In Liquid Propane Fire Pit Burner FPB-29RBS22TPSI-P
- Pan Size:29"
- Burner Size:22"
- BTU:125,000
- Ignition System:TPSI
- Burner Pan Type:Drop-In
- Burner Pan Material:Stainless Steel
- Pan Depth:2
- Min/Max Opening:30 - 31
- Inside Pan: 29
- Ground Level:8
- Side Wall:36
- Combustible Ceiling: 120
- Combustible Wall:18
Caution:DO NOT USE REGULAR STONE OR ROCKdue to susceptibility of explosion.
Gas Pressure
Natural Gas:
- Min. Inlet: 3.5WC (0.87kPa)
- Max. Inlet: 10.5 WC (2.61kPa)
- Normal Inlet: 7.0 WC (1.74kPa)
Liquid Propane:
- Min. Inlet: 10.5 WC (2.61kPa)
- Max. Inlet:13.0 WC (3.23kPa)
- Normal Inlet:11.0 WC (2.73kPa)
Disclaimer: BTU listings are based on 7.0WC for natural gas and 11.0WC for liquid propane (LP) to the gas valve. Flex line size and proper gas pipe sizing will also affect BTU's. As a result, your BTUs may vary slightly from Table 2 specifications.
