Firegear 84" Linear Stainless Steel Flat Pan T-Burner LOF-8408FTAWS Premium Outdoor Fire Pit Insert

What are the key features of the Firegear 84" Linear Stainless Steel Flat Pan T-Burner (LOF-8408FTAWS) that make it suitable for large outdoor fire features?

The Firegear 84" Linear Stainless Steel Flat Pan T-Burner LOF-8408FTAWS is the ideal solution for those looking to create a stunning outdoor fire feature. Crafted from premium stainless steel, this fire pit insert offers superior durability and resistance to the elements, ensuring a long-lasting, beautiful addition to your outdoor space. The 84-inch length provides a larger flame display, perfect for enhancing the ambiance of any patio, backyard, or outdoor kitchen. Its flat pan T-burner design delivers a smooth, consistent flame for a captivating and inviting atmosphere. This fire pit insert is engineered for easy installation and seamless integration into custom fire pit designs, allowing for a sophisticated and modern fire feature. Whether for intimate gatherings or grand outdoor events, the LOF-8408FTAWS enhances your space with both elegance and function, making it the ultimate centerpiece for outdoor living. Enjoy warmth, beauty, and reliable performance with the Firegear 84" Linear Stainless Steel Flat Pan T-Burner.

Add-ons Item:Lava Rock Only: 25lbs Lava Rock as a Base: 25 lbs Glass (on top of Lava Rock): 50 lbs Lava Stones (on top of Lava Rock: 30 lbs Glass Only: 110 lbs

Also Available in , ,

Key Features for Firegear 84" Linear T Burner

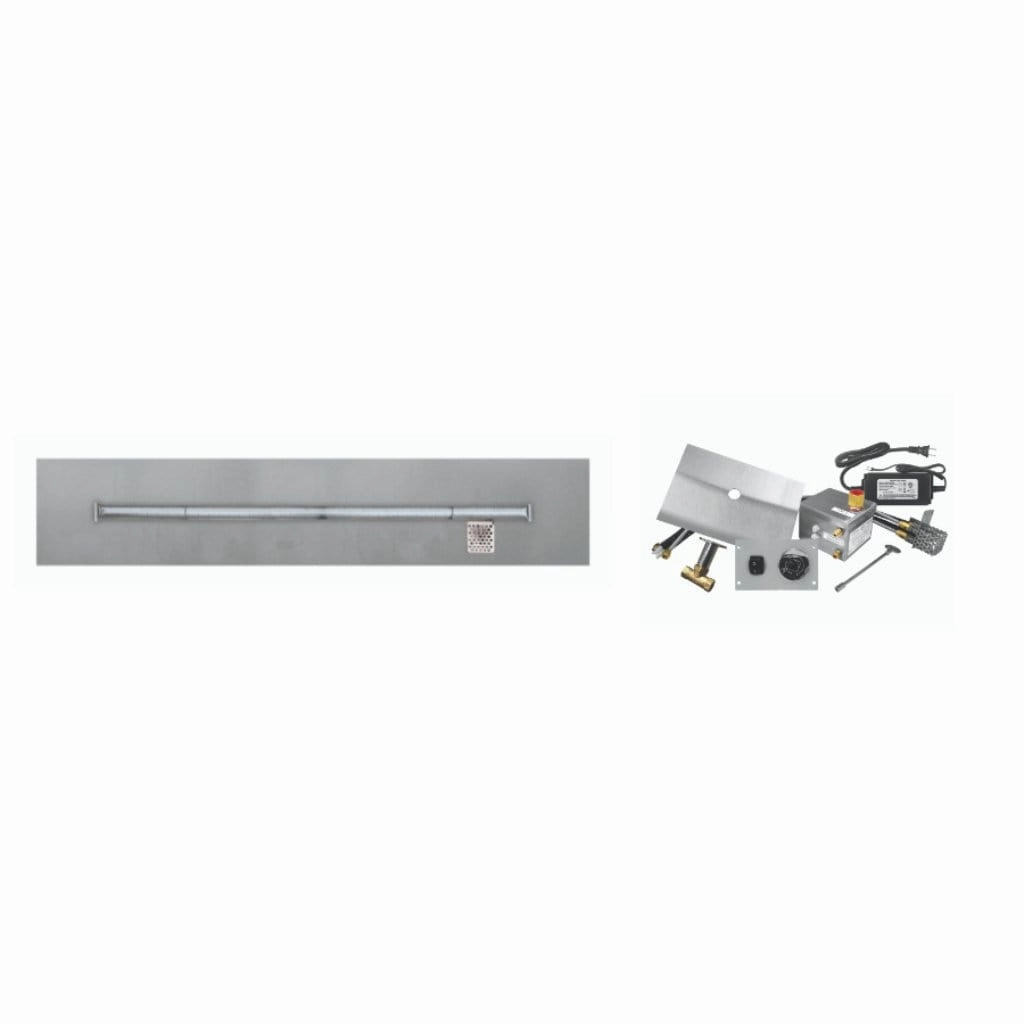

• Available in Electronic (AWS) andMatch Throw (MT)Ignition Systems models.

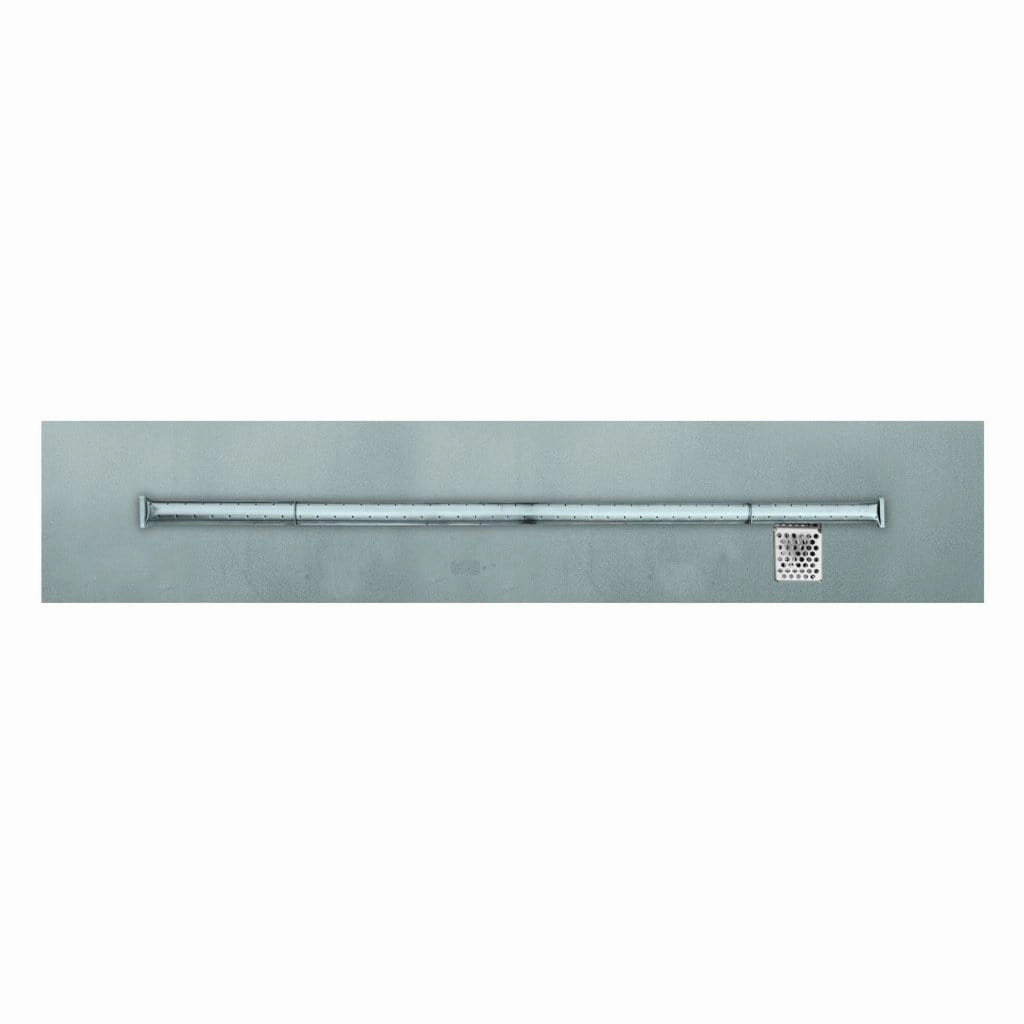

• Linear stainless steel flat pan
• Pro series brass "T" Burner

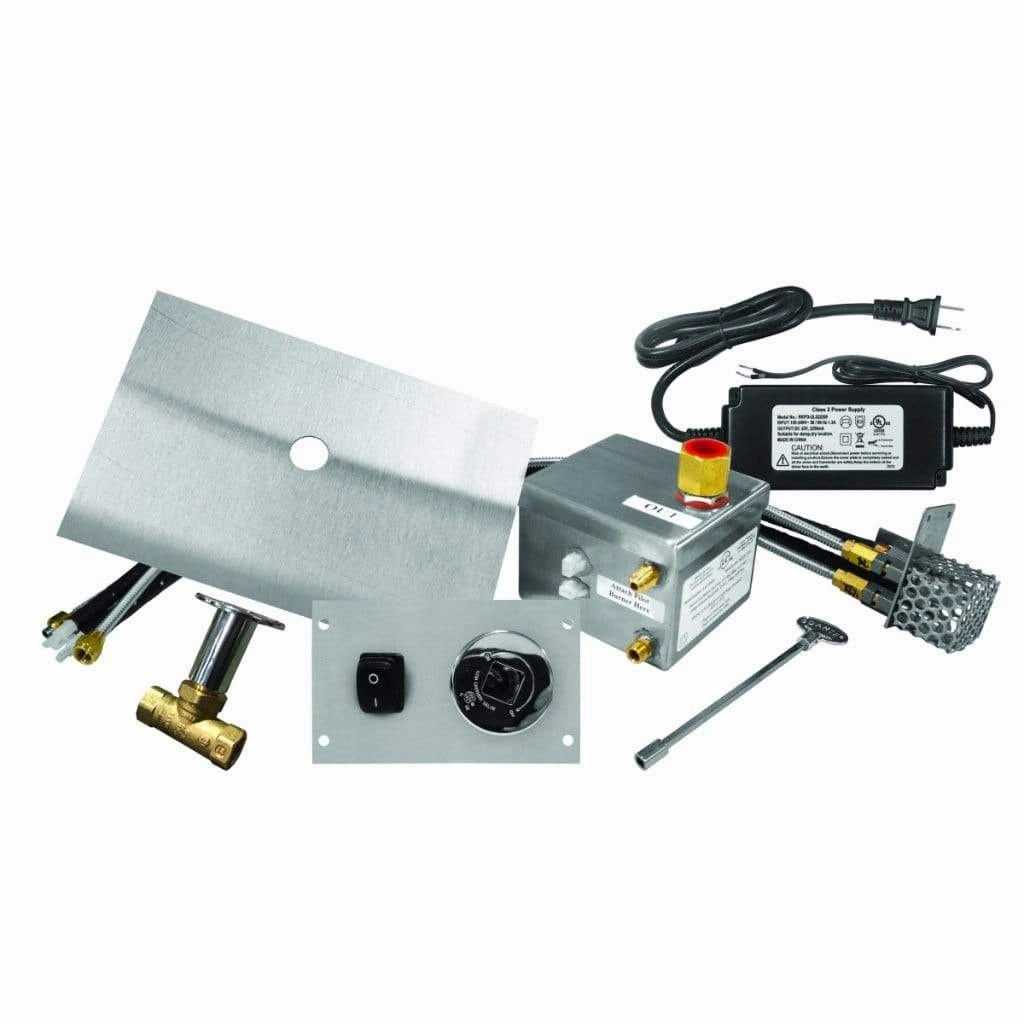

• AWS fully electronic ignition, 30VDC (Requires 120Vac), assembled (GOE-30VDC) power supply, AWS control panel with On/OFF weatherproof switch

Manuals for Firegear 84" Linear Stainless Steel Flat Pan T-Burner

Specifications for Firegear 84" Linear Stainless Steel Flat Pan T-Burner LOF-8408FTAWS

• Burner Size: 81"
• BTU: 175,000
• Ignition System: AWS
• Burner Pan Material: Stainless Steel
• Weight (Lava Rock): 55 lbs
• Weight (Fire Glass): 110 lbs
• Flat Pan Dimension: 84 x 8(2133 x 203mm)
• Burner Length: 81(2057mm)
• Max Opening Dimensions: 82 x 7(2082 x 152mm)
• Ground Level:8(203mm)
• Side Wall:36(914mm)
• Combustile Ceiling: 120(3048mm)
• Combustile Floor:18(457mm)

Gas Pressure Table

Natural Gas

• Min. Inlet: 3.5 WC ( PSI) (0.87kPa)

• Max. Inlet:14.0 WC ( PSI) (3.48kPa)

• Normal Inlet:7.0 WC ( PSI) (1.74 kPa)

Liquid Propane

• Min. Inlet 8.0 WC ( PSI) (1.99kPa)

• Max. Inlet14.0 WC ( PSI) (3.48kPa)

• Normal Inlet11.0 WC ( PSI) (2.73 kPa)

Disclaimer: Btu listings are based on 7.0WC for Natural Gas and 11.0WC for Liquid Propane (LP) at the burner orifice. Flex line size and proper gas pipe
sizing will also affect Btus. As a result your Btus mayvary slightly from Table 2 specifications.
