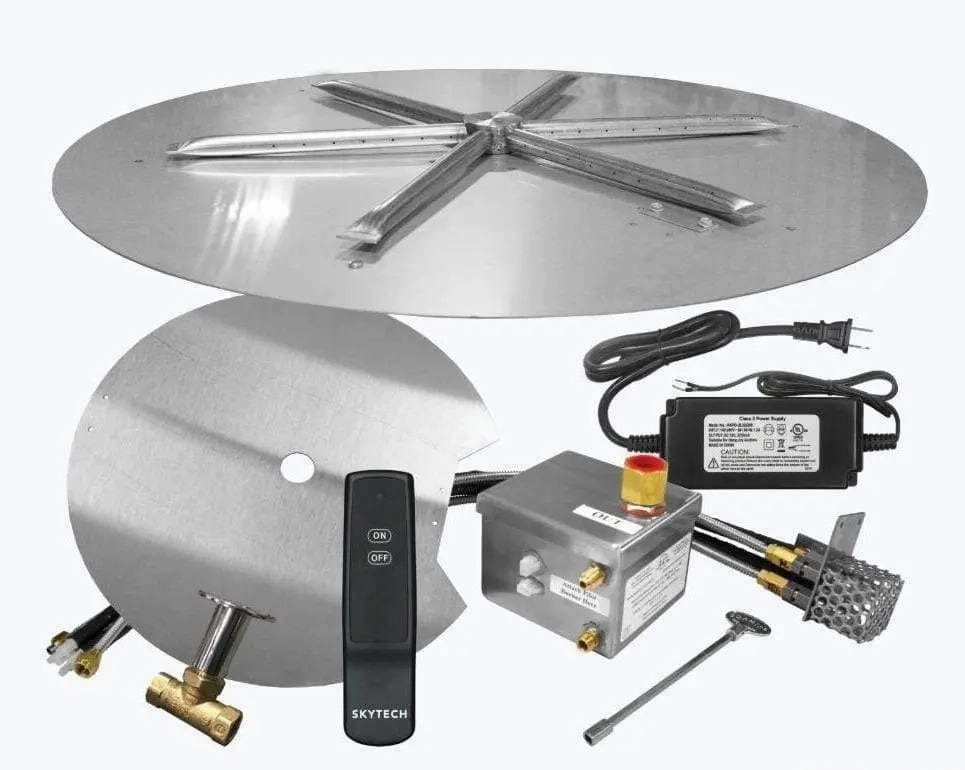

Firegear 34" Stainless Steel Round Disk Gas Fire Pit Kit FPB-34DBSAWS Review
Are you in search of a fire pit bundle to suit your outdoor patio? Checkthe Firegear 34" Stainless Steel Round Disk Gas Fire Pit Kit FPB-34DBSAWS. Avail one here at Flame Authority, your Trusted Dealer!
This high-quality burner system enhances your gas fire pit project with a durable 304 stainless steel pan and a "spur" design for a realistic flame. Firegear Outdoors all-weather electronic ignition system simplifies installation, adds versatility, and ensures reliable operation. It enables remote control functionality, integrates essential safety features, and includes a plug-in transformer for easy connection to a 120V/15A outlet. The system's flame sensor reignites the burner if needed and shuts it off if no flame is detected, offering both safety and convenience.
Disclaimer: Btu listings are basedon 7.0WC for Natural Gas and11.0WC for Liquid Propane (LP)at the burner orifice when usingFiregear Outdoors Burning Spurs.If you use a burner other than aBurning Spur, Btus will vary.
Buy Firegear 34" Stainless Steel Round Disk Gas Fire Pit Kit FPB-34DBSAWS today. Available here at Flame Authority, your Trusted Dealer!
Features
- Round stainless steel drop-in pan with lip
- Stainless steel burning spur
- AWS fully electronic ignition - 30VDC (Requires 120Vac) - Assembled (GOE-30VDC) power supply, AWS control panel with On/OFF weatherproof switch
- Propane conversion kit sold separately.
Manuals
Need assistance?Talk to an Expert at 1-800-923-4556 or email: [email protected] to get the best-suited Fire Pit Burner Kits for your needs.
Specifications
- Pan Size: 34"
- Burner Size: 31"
- Gas Type: Natural Gas / Liquid Propane
- BTU: 175,000 btu
- Depth: 1/16
- Min/MaxOpening orDiameter: Max. 32"
- Inside/OutsideDimention: 34"OD
- GroundLevel: 18
- SideWall: 36"
- CombustibleCeiling: 120"
- CombustibleFloor: 18"
Gas Pressure
Min. Inlet
- Natural Gas: 3.5 WC ( PSI) (0.87kPa)
- Liquid Propane: 8.0 WC ( PSI) (1.99kPa)
Max. Inlet
- Natural Gas: 14.0 WC ( PSI) (3.48kPa)
- Liquid Propane: 14.0 WC ( PSI) (3.48kPa)
Normal Inlet
- Natural Gas: 7.0 WC ( PSI) (1.74 kPa)
- Liquid Propane: 11.0 WC ( PSI) (2.73 kPa)
Caution:DO NOT USE REGULAR STONE OR ROCKdue to susceptibility of explosion.
Glass and Media
How much Media should I use?
- Lava Rock Only-25lbs
- Lava Rock as a Base- 25 lbs
- Glass (on top of Lava Rock)- 50 lbs
- Lava Stones(on top of Lava Rock) -30lbs
- Glass Only- 110 lbs
Black Lava Rock 10 lb. Bag
Black Lava Rock 40 lb. Bag
Dark Gray Lava Stones
Black Broken Glass
Copper Broken Glass
Crystal Broken Glass
Dark Blue Broken Glass
Light Blue Broken Glass
Seabreeze Broken Glass
Black Reflective Glass
Bronze Reflective Glass
Cobalt Reflective Glass
Copper Reflective Glass
Silver Reflective Glass
Optional Accessories
2 pcs Flexible Frame - FLEXFRAME-SS
- Allows you the flexibility to fill the gap between the fire pit structure and the pan.
- Engineered to protect against the outdoor elements including saltwater environment
- Flexible and easy to adapt for round, square, and rectangular fire pits.
3 pcs Flexible Frame -FLEXFRAME-SS3
- Allows you the flexibility to fill the gap between the fire pit structure and the pan.
- Engineered to protect against the outdoor elements including salt water environment
- Flexible and easy to adapt for round, square, and rectangular fire pits.
Paver Control Panel Kit - PAVER-CP-AWS
For use when building fire pit enclosures with SRW block and an AWS burner system. Thermocouple Piloted Safety "TPSI" Burner Systems.SRW bracket kit and extender,Lintel - 12 L x 3 W, Screws and fittings, Tapcon concrete anchors.Paver Vent Kit - PAVER-VENT-4-LNTS
- Stainless Steel Paver Vent Kit with Lintel: includes (2) 3 5/8" tall x 8" wide vents with mounting plate, extension plate extends overall size up to 10" wide and two (2) Tapcon self-tapping concrete anchors and Lintel 12" Long x 3" Wide (20 Gauge Galvanized Steel). Each vent provides 18 square inches of ventilation.
Paver Vent Kit - PAVER-VENT-6-LNTS
- Stainless Steel Paver Vent Kit with Lintel: includes (2) 5 5/8" tall x 8" wide vents with mounting plate, extension plate extends overall size up to 10" wide and two (2) Tapcon self-tapping concrete anchors and Lintel 12" Long x 3" Wide (20 Gauge Galvanized Steel). Each vent provides 18 square inches of ventilation.
